Motor for fast rolling shutter door

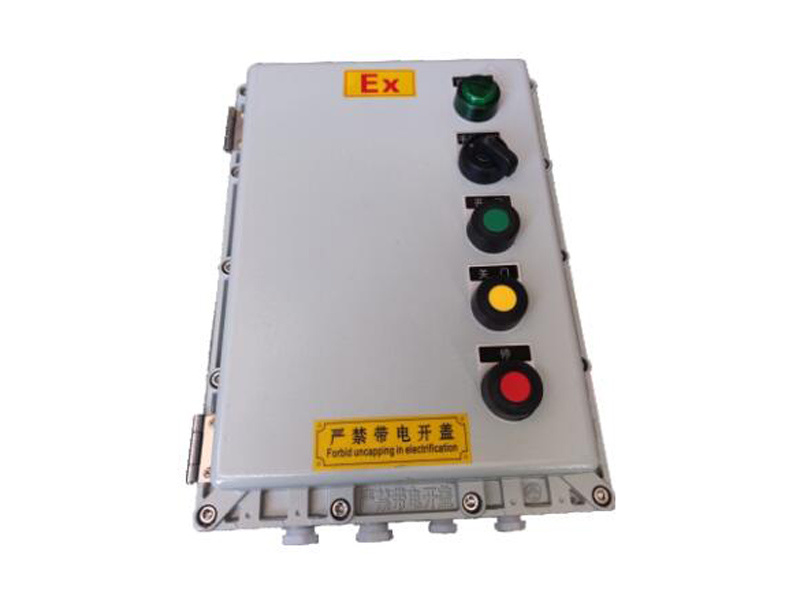

This product is suitable for occasions with explosion-proofrequirements and rapid closure and isolation，coal mines,petroleum and natural gas, chemical and other company sites.The explosion-proof motor and explosion-proof control box areadopted，and the explosion-proof button can be operated torealize the rapid opening and closing of the rolling shutter doorby electronic control. In case of emergency (power failure,electrical failure), the opening and closing functions can becompleted manually. This product is small and exquisite,without electric spark，static electricity,safety and reliabilityduring use.

Category：

Motor for fast rolling shutter door

Back to list

Product Details

Project model	WKSB80 -220	WKSB80 -380	WKSB90 -220	WKSB90 -380	WKSB100 -380	Remark
Output torque (Nm)	30	45	45	60	90
Output speed (rpm)	100	100	100	100	100	50Hz state
Motor power (W)	750	1100	1100	1500	2200
Input voltage (V)	220/single-phase three-wire	380/three-phase five-wire	220/single-phase three-wire	380/three-phase five-wire	380/ three-phase five-wire
Rated current (A)	2.5	2.2	3.6	3.0	4.5
Operating temperature (°C)	-30°C~45°C	-30°C~45°C	-30C~45C	-30°C~45°C	-30°C~45°C
Output shaft diameter (rnrn)	25	25	25	25	28
Output shaft key width (mm)	8	8	8	8	8
Host weight (Kg)	16	16	25	25	35
Applicable door size (m2)	10	15	15	20	30
work schedule	S1	AND	AND	AND	AND
Reel line speed (m/s)	1~1.2	1~1.2	1~1.2	1~1.2	1~1.2
