Explosion-proof translating door lifter General

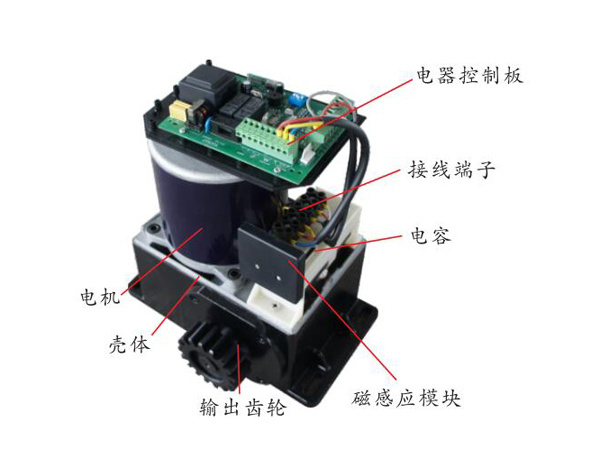

This product is used to drive the driving motor of translating door lifter.The Generaladopts mechatronic design with built-in control board and remote controller.Theactuator system is guarantee by a magnetic induction switch.The explosion-prooftype adopts explosion-proof motor design and external explosion-proof controller,which does not generate electric spark during operation and is mainly used in coalmines, petroleum, natural gas,chemical and other company sites.The key-controlled releaser specially configured for users is manually operated in case ofemergency (power failure, electrical failure), making it a durable and safe product.
Category：
Explosion-proof translating door lifter General
Product Details
This product is used to drive the driving motor of translating door lifter.The Generaladopts mechatronic design with built-in control board and remote controller.Theactuator system is guarantee by a magnetic induction switch.The explosion-prooftype adopts explosion-proof motor design and external explosion-proof controller,which does not generate electric spark during operation and is mainly used in coalmines, petroleum, natural gas,chemical and other company sites.The key-controlled releaser specially configured for users is manually operated in case ofemergency (power failure, electrical failure), making it a durable and safe product.
|
item type |
WK55O-1P(FB) |
WK550-3P(FB) |
WK370-1P |
WK550-1P |
WK750-3P |
|
Input voltage (V) |
220/single-phase three-wire |
380/three-phase five-wire |
220V |
220V |
380 |
|
Rated current (A) |
3.0 |
1.0 |
2.6 |
3.5 |
2.2 |
|
Motor power (W) |
550 |
550 |
370 |
550 |
750 |
|
Motor speed (rpm) |
1400 |
1400 |
1400 |
1400 |
1400 |
|
Output speed (rpm) |
46.7 |
46.7 |
46.7 |
46.7 |
46.7 |
|
Translation speed (m/min) |
12.3-20 |
12.3-20 |
12.3-20 |
12.3-20 |
12.3-20 |
|
Maximum door weight (Kg) |
1500 |
1500 |
1000 |
1500 |
1500 |
|
Dimensions (mm) |
264x250x410 |
264x250x410 |
264x213x320 |
264x213x320 |
264x213x320 |
|
work schedule |
S2 |
S2 |
S2 |
S2 |
S2 |
|
|
|

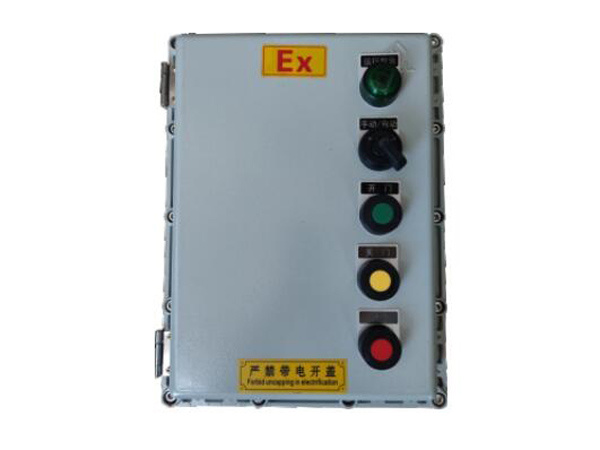

Explosion proof controller |
|

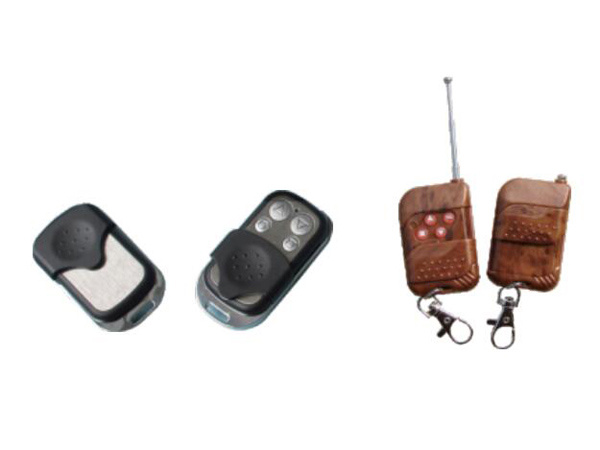

Remotecontrol |

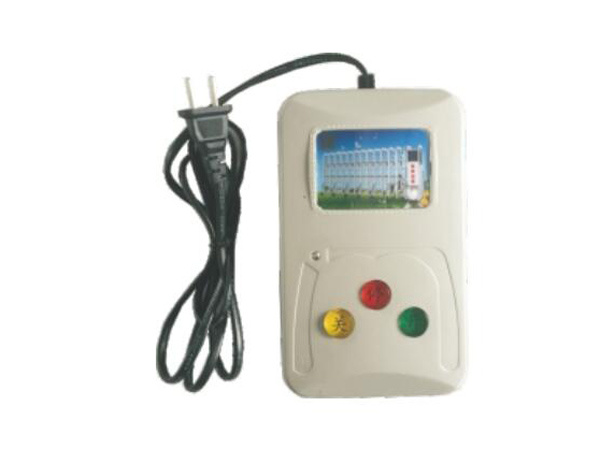

Benchswitch |

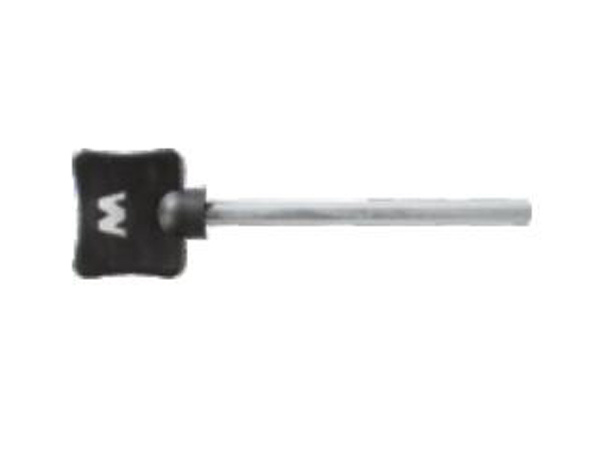

Manualkey |

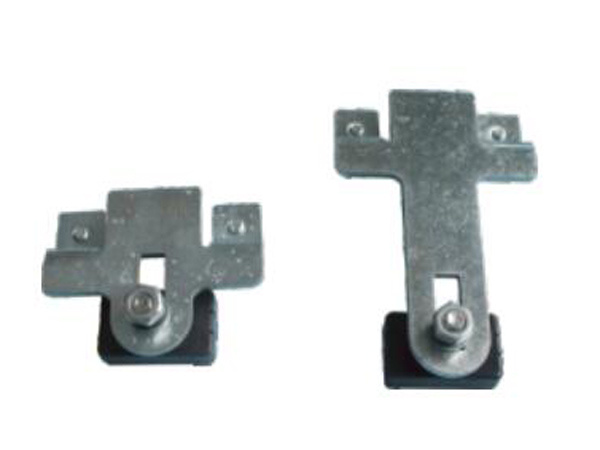

Positionlimitmagnetic |
